Welcome to

Earth Radar

Making The Invisible - Visible

The Leaders in Surface and Subsurface Asset Solutions

Utilities

Electrical, gas, telecommunications, water, sewerage

Roads

Surfaced and unsurfaced roads, highways, bridge deck, culverts

Airports

Runways, aprons, taxiways

Property

Property and building sites, town developments, subdivisions

Rail

Level crossing redesign, lightrail/tramway dilapidation, station development, greenfield and brownfield rail, corridor analysis, ballast

Defence

Improvised explosive device detection, hidden cache detection

Mining

Ground/Rock Profiling Survey, Surface Characteristics

Ports

Environmental Imaging, Mapping, Modelling, Reporting and Visualisation

Ports Image
Mining Image
Defence Image
Rail Image
Property Image
Airport Image
Roads Image
Utilities Image

Our Story

Earth Radar provides an integrated suite of rapid and non-destructive technologies to measure and manage surface and sub-surface assets.

Technological Leaders

The GPR and surface imaging systems developed by Earth Radar are pushing boundaries to provide ever greater penetration, detail, clarity and resolution. Our R+D team is being driven by some of the leading minds in the Geophysical field to develop our systems to exceed expectations. Earth Radar’s Sparas™ NM-GPR system can be driven along a road network under normal road conditions at speeds of up to 100km/h to rapidly capture pavement layer thicknesses and detect potential voids and defects. The Latro™ 3D-GPR system is designed to allow the reality capture of Subsurface Utility Information (SUI) to survey grade accuracies enabling our SUI Locating Technicians to generate more accurate and complete 3D models of subsurface infrastructure compared to traditional GPR systems.

Trusted Subsurface Utility Information (SUI) Specialists

Earth Radar’s team of SUI Locating and Survey Technicians have many years’ experience and are highly trained to locate, verify, map and model subsurface utilities and assets. All of our locators go through our in-house training and mentor program before obtaining their Dial Before You Dig Accreditation to give you confidence in the service we offer. A detailed and accurate understanding around the SUI present on a site offers many benefits: it enables best practise, minimises risk to employees and others, mitigates damage to third party asset owners and reduces costly variations from unknown service conflicts. Earth Radar’s deliverables are designed to clearly show the level of confidence to which the SUI shown has been determined. Using the AS 5488 classification standards, it is possible to quickly and easily understand the Quality Level of the data provided. This means we offer more than just paint on the ground; we offer a tailored deliverable that we will stand behind and take accountability for.

Our Technology

Deeper, Faster, More Accurate

Proudly Australian owned, developed and built.

Utilivision-Icon
Photometric-Icon
LiDAR-Icon-2
EMI-Icon
3D-GPR-Icon
Contact Earth Radar today to arrange a personalised obligation-free quote.

Our Sectors

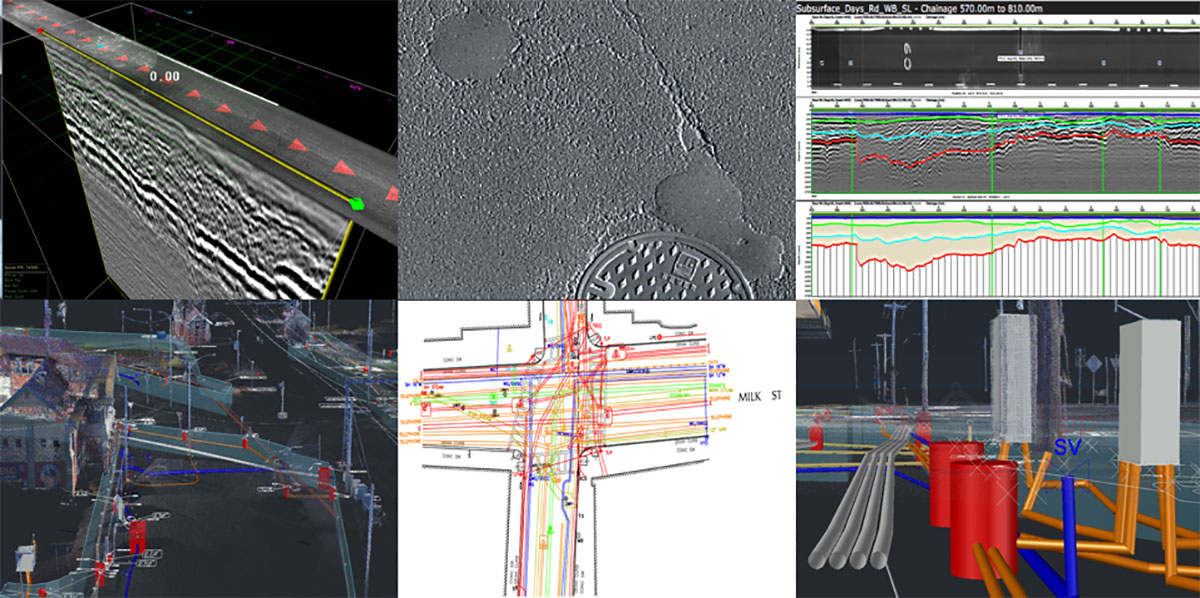

Integrated Multi-Sensor Subsurface Mapping

Earth Radar provides a fully augmented service integrating a suite of technology based solutions to identify, locate, survey and map underground assests.

Worker surveying

Why Choose Earth Radar?

Depth, Speed and Accuracy

Earth Radar patented 3D Ground Penetrating Radar technologies allow us to penetrate different soil types to greater depth, with increased positional accuracy and clarity, and collect at higher speeds negating the need for traffic control.

Fully Augmented Solutions

Earth Radar integrates multiple sensors and positioning systems such as GPS/GNSS/IMU, EMI, LiDAR and environmental cameras with the 3D-GPR to provide complete above-ground, surface and subsurface mapping.

CAD and BIM ready

Data is processed and presented in industry standard CAD and BIM formats ready for immediate use by engineers and planners for design improvements or clash detection.

3D Visualisation and Fly Through

Fly underground and pan around utilities, gain a better perspective of possible conflicts or clash detection, and differentiate between types of utilities and their size.

Central Processing and Storage

In field collected data is uploaded into the cloud where it is interpreted and processed to generate 2D and 3D CAD, BIM and 3D Visualisations that can be stored in a central database for access at any time.

Holistic Subsurface Utility Information (SUI) Mapping Service

Earth Radar can offer a total end-to-end SUI service from an initial desktop Quality Level D investigation through to Quality Level B & C site location and mapping, to Quality Level A Non-Destructive Digging (NDD or potholing) verification.
